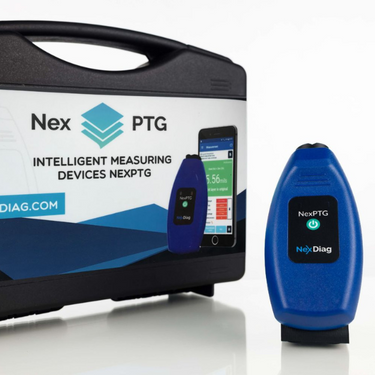

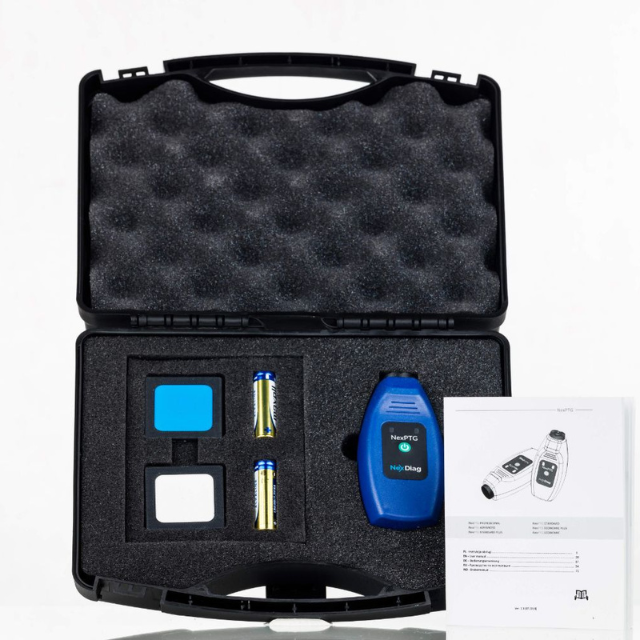

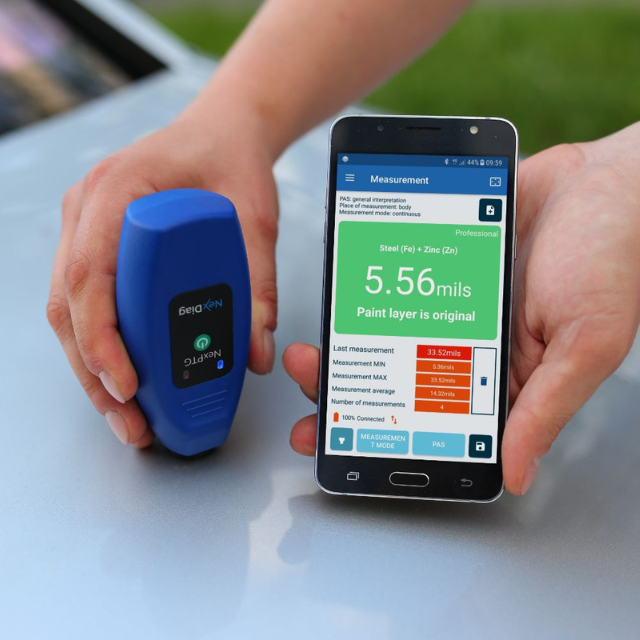

NexPTG Professional Paint Thickness Gauge

NexPTG Professional is an effective and easy-to-use gauge that allows you to make measurements quickly and accurately. In addition, the gauge has a number of additional innovative options that will help the user to examine the vehicle more easily and efficiently.

An advanced version of the NexPTG lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing. The Professional version has a movable head allowing for precise measurements on concave and convex elements.

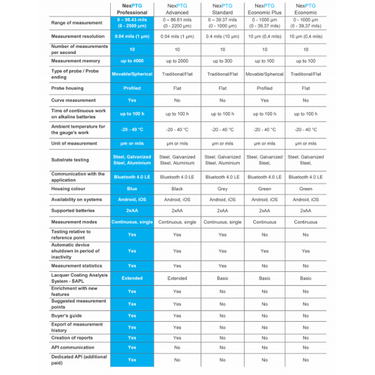

- Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminium [Al]
- Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
- Range of measurement: 0 - 2500 μm (0 – 98.43 mils)

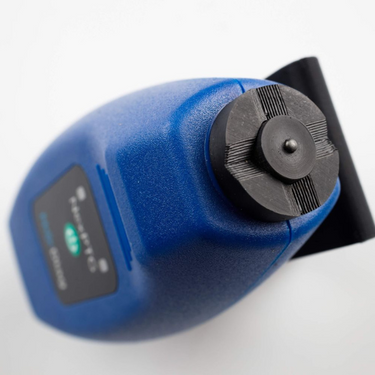

- Type of probe / End of probe: movable/spherical
- Possible measurement on curvatures (profiled probe housing)
- Resolution of measurement: 1 μm (0.04 mils)
- Measurement memory: up to 4000 items
- Wireless transmission: Bluetooth 4.0 LE
- SAPL Extended: lacquer coating analysis system
- Suggested measurement points

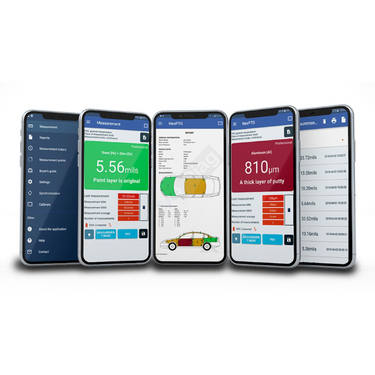

- Creation and export of measurement history
- Creation and export of reports
- API communication
- Supported systems: iOS / Android

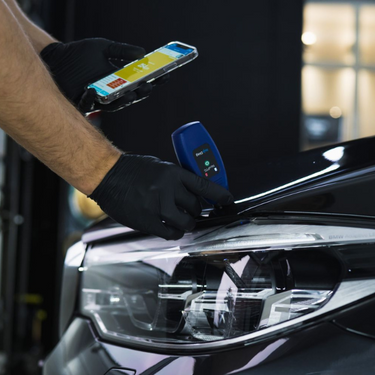

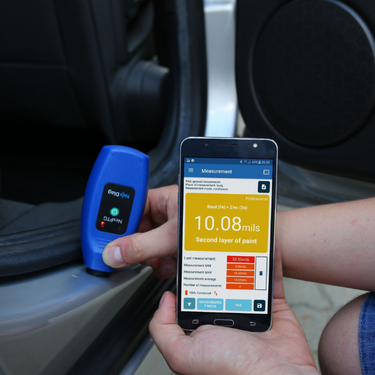

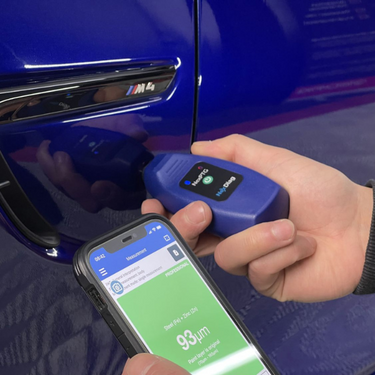

The NexPTG Professional is the most advanced model of the gauge, allowing you to make precise measurements including on curved surfaces. Thanks to the use of a movable head and a profiled probe housing, in the device, the effect of vibrations on reading measurements on convex or concave internal and external elements of a vehicle has been eliminated. Thanks to the combination of the gauge and a telephone, the user receives enormous possibilities unattainable for traditional gauges.
